Home > Products > Rank Test > AC 16kw 50Hz stamford alternator

Basic Info

Model No.:  STF series

Product Description

Model NO.: STF series Type: AC Brushless gernetor Freq: 50Hz/60Hz Certification: ISO9001 Color: Any colour Output: 6.5-2000kw Trademark: Landtop, TOPS Specification: CE, CQC, ISO. HS Code: 8501610000 Output Type: AC Three Phase Speed: 1500rpm/1800rpm Model: copy stanford Alternator Warranty: One Year Insulation Class: Class B/F Voltage: 380V/400V/440V/660V Transport Package: Wooden Case Origin: Fujian, China AC 16kw 50hz stamford alternator

Product Description
All copy stamford alternator stators are woound to 2/3 pitch. This eliminates triple(3rd, 9th, 15th) harmonics on the voltage waveform and is found to be the optimum design for trouble-free supply of non-linear loads. The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher winding pitches, when in parallel with the mains. A fully connected damper winding reduces oscillations during parallelling.This winding, with the 2/3 pitch and carefully selected pole and tooth designs, ensures very low waveform distortion.

Technical Data
Model Output 50Hz Output 60Hz SINGLE BEARING DOUBLE BEARING
KVA KW KVA KW N.W(kg) G.W(kg) PACKAGE SIZE N.W(kg) G.W(kg) PACKAGE SIZE
STF164A 8.1 6.5 9.6 7.7 78 95 50*55*55 91 101 58*55*55
STF164B 11 8.8 13 10.4 83 102 98 108
STF164C 13.5 10.8 16 12.8 92 110 106 116
STF164D 16 12.8 18.9 15.1 99 116 112 122
STF184E 22.5 18 27.5 22 120 130 58*55*55 131 141 67*55*55
STF184F 27.5 22 32.5 26 150 160 67*55*55 154 164 77*55*55
STF184G 31.3 25 35 28 160 172 170 180
STF184H 37.5 30 44.3 35.4 180 200 74*55*55 220 230 84*55*55
STF184J 40 32 47.3 37.8 192 215 230 240
STF224C 42.5 34 50 40 235 255 78*58*78 250 275 85*58*78
STF224D 50 40 60 48 250 270 270 295
STF224E 60 48 67.5 54 270 290 87*58*78 290 315 94*58*78
STF224F 72.5 58 83.8 67 310 330 320 345
STF224G 85 68 93.8 75 350 370 93*58*78 360 385 100*58*78
STF274C 100 80 112.5 90 385 415 87*65*87 395 435 93*65*87
STF274D 114 91.2 131.3 105 405 435 420 460
STF274E 140 112 160 128 455 485 98*65*87 470 510 105*65*87
STF274F 160 128 181.3 145 500 530 510 550
STF274G 182 145.6 205 164 550 580 102*65*87 560 600 108*65*87
STF274H 200 160 237.5 190 600 630 610 650 111*65*87
STF274J 230 184 269 215.2 720 760 115*65*87 720 760 115*65*87
STF274K 250 200 291 232.8 740 760 740 760 115*65*87
STF314C 250 200 287.5 230 850 910 125*75*99 850.5 910 135*75*99
STF314D 300 240 343.7 275 915.5 910 915.5 975
STF314ES 325 260 381 305 995.5 1055 995.5 1055
STF314E 350 280 400 320 995.5 1055 995.5 1055
STF314FS 380 304 444 355.2 1123.5 1183 135*75*99 1123.5 1183 145*75*99
STF314F 400 320 455 364 1123.5 1183 1123.5 1183
STF354C 455 364 525 420 1250 1350 145*85*116 1250 1350 155*85*116
STF354D 500 400 575 460 1358 1450 1358 1450
STF354E 600 480 681 544.8 1498 1598 1498 1598
STF354FS 625 500 700 560 1653 1753 152*85*116 1653 1753 162*85*116
STF354F 670 536 738 590.4 1653 1753 1653 1753

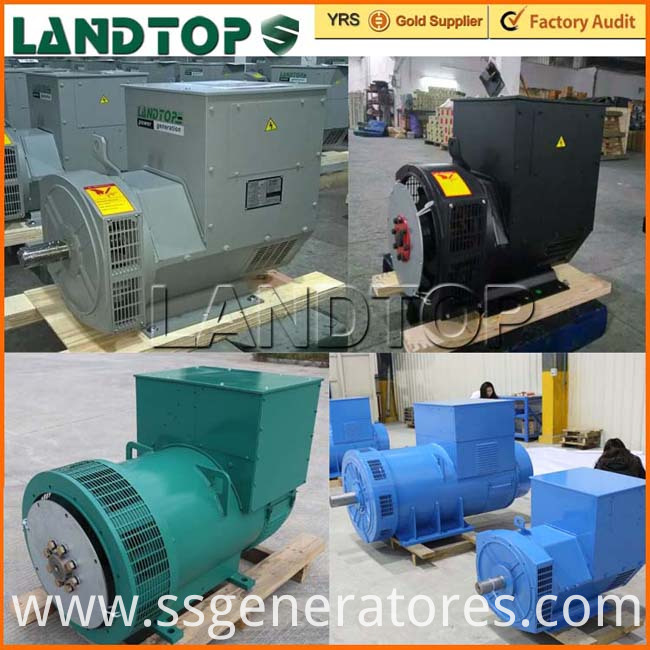

Detailed Images
AC 16kw 50Hz stamford alternator
AC 16kw 50Hz stamford alternator

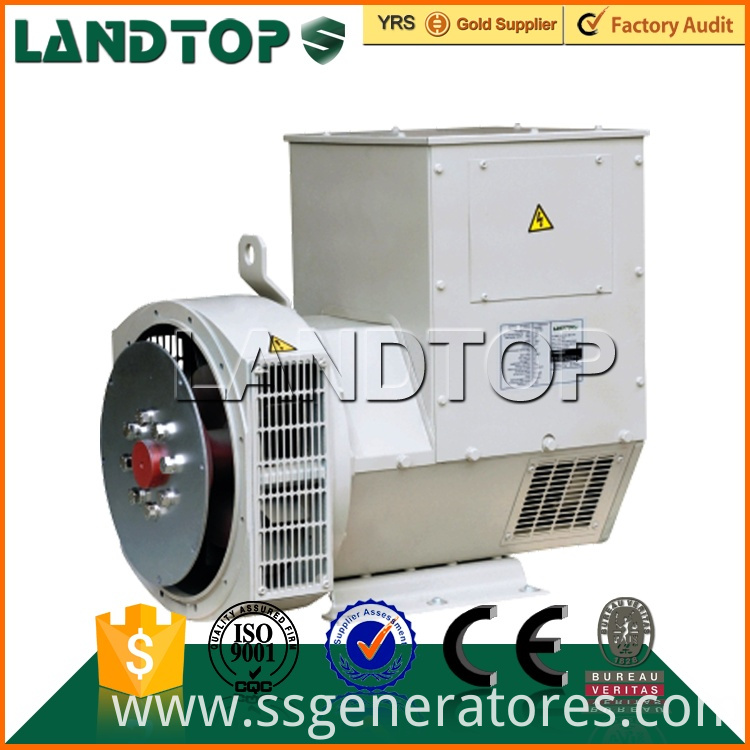

Product show
AC 16kw 50Hz stamford alternator

Company Information
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering  Alternators, Generators, Electric Motors etc.

With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong (Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.

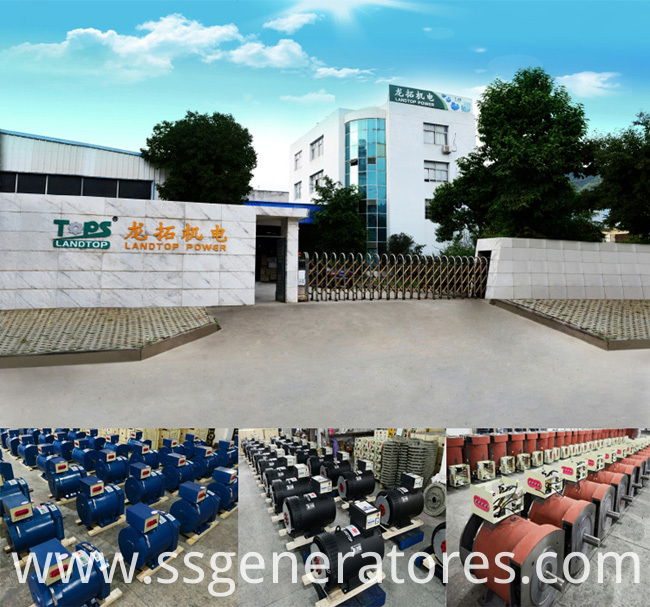

Factory Show
AC 16kw 50Hz stamford alternator
Certification
AC 16kw 50Hz stamford alternator

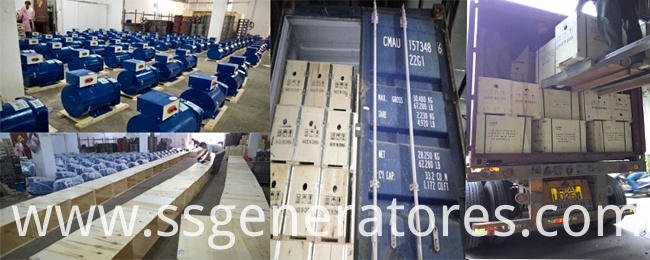

Packing & Shipping
AC 16kw 50Hz stamford alternator

FAQQ: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy.  Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?

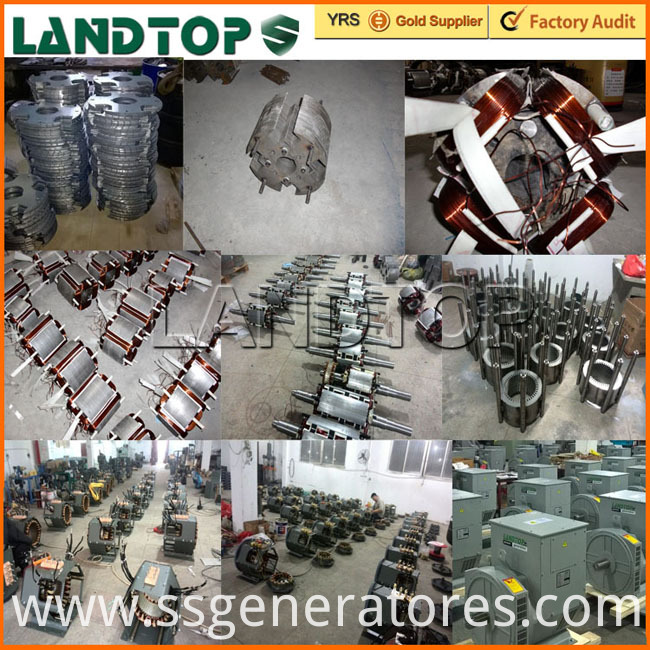

A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,  COI for Iran, SASO for Saudi Arabia, etc What we do: 1.Stamping of lamination
2.Rotor die-casting
3.Winding and inserting - both manual and semi-automatically
4.Vacuum varnishing
5.Machining shaft, housing, end shields, etc…
6.Rotor balancing
7.Painting - both wet paint and powder coating
8.assembly
9.Packing
10.Inspecting spare parts every processing
11.100% test after each process and final test before packing.  For Sample: According to your design, sample will be offer !!!
Advantage:
1. Low MOQ: It can meet your promotional business very well.
2.Good Service: We treat clients as friend.
3.Good Quality: We have strict quality control system, good reputation in the market.
4. Fast & Cheap Delivery: We have big big discount from forwarder

Choose us !! Not only your suppliers but also your friends!!!

Contact us if you need more details on electric alternator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 3 phase power alternator、16kw 50Hz stamford alternator. If these products fail to match your need, please contact us and we would like to provide relevant information.
