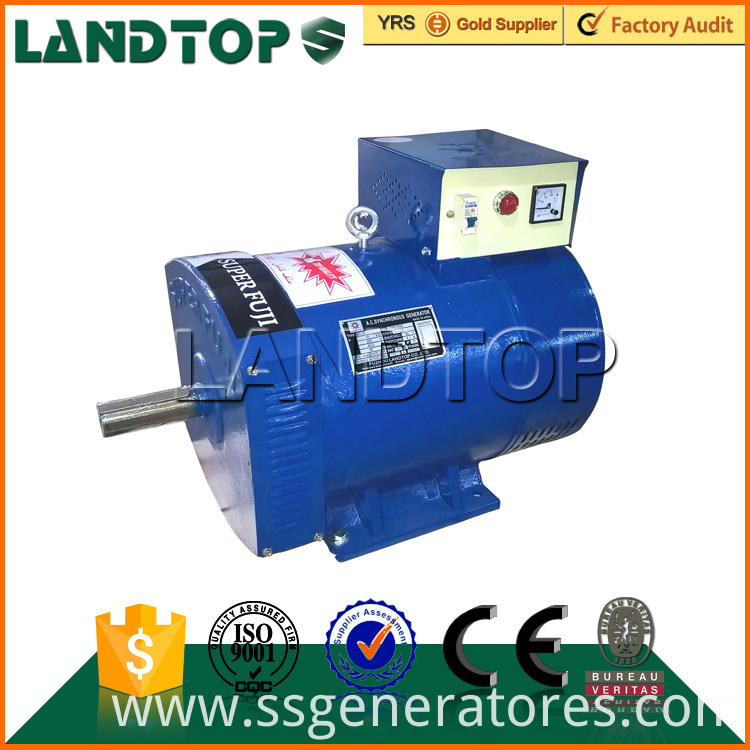

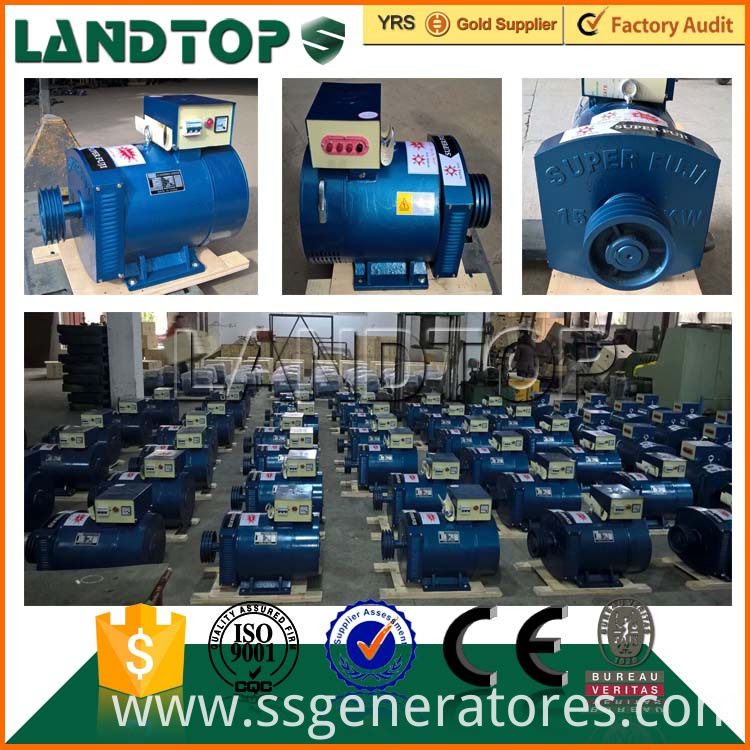

Landtop AC 380V Synchronous 50kw brushless alternator
Basic Info
Model No.: ST series
Product Description
Model NO.: ST series Winding: Copper Wire Color: Multi-Colors Pole: 4 Poles Function: Alternators for Generators out Put: Single/Three Phase Transport Package: Wooden Case Origin: Fujian, China (Mainland) Warranty: 24 Months Housing: Cast Iron Certification: ISO, CE, CQC and SGS etc. . Pack: Wooden Case Application: Standby Power for Variety of Application Trademark: TOPS/LANDTOP/KONJIALI Specification: ISO, CE, CQC and SGS etc. HS Code: 8501610000 Landtop AC 380V Synchronous 50kw Brushless Alternator ST / STC Series Single / Three Phase A.C. Synchronous Generator / Alternator
This series generators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using.
The generators are of dripproof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.
The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor. Under the following environment, The generator could be continuous and rated running:
1.Above sea level: Not exceed 1000m
2.Cooling air temperature: 258~313K(-15 oC ~ 40 oC)
3.Relative air damping: not exceed 90%
Technical Data
FAQ
Q: Do you offer OEM service? A: Yes Q: What is your payment term? A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C. Q: What is your lead time? A: About 30 days after receiving deposit or original L/C. Q: What certifiicates do you have? A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc

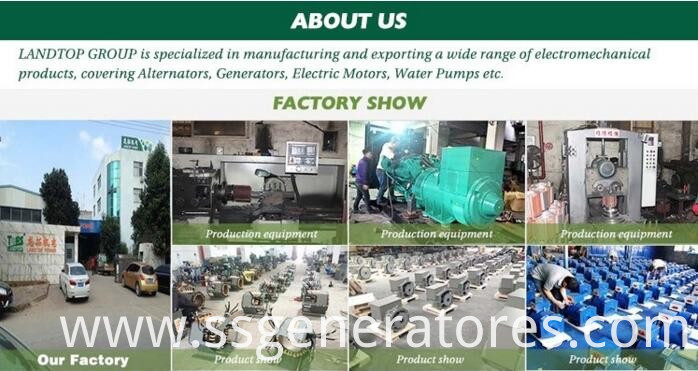

What we do: Stamping of lamination Rotor die-casting Winding and inserting - both manual and semi-automatically Vacuum varnishing Machining shaft, housing, end shields, etc Rotor balancing Painting - both wet paint and powder coating assembly Packing Inspecting spare parts every processing 100% test after each process and final test before packing. Product
Exhibition:
Sample:
According to your design,sample will be offer!!
Advantage:
1.Low MOQ: It can meet your promotional business very well.
2.Good Service : We treat clients as friend.
3.Good Quality :We have strict quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from forwarder
Chosse us !! not only your suppliers but also your friends!! Contact us if you need more details on 15kw generator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 50kw brushless alternator、380V Synchronous 50kw brushless alternator. If these products fail to match your need, please contact us and we would like to provide relevant information.
This series generators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using.
The generators are of dripproof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.
The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor. Under the following environment, The generator could be continuous and rated running:
1.Above sea level: Not exceed 1000m
2.Cooling air temperature: 258~313K(-15 oC ~ 40 oC)
3.Relative air damping: not exceed 90%
Technical Data
Model | Output (kW) | Current(A) | Voltage(V) | Power factor (cos) | Pole number | Speed (r.p.m) | ||
Series Connection | Parallel Connecion | Series Connection | Parallel Connection | |||||
ST-1 | 1 | 4.35 | 8.7 | 230 | 115 | 1.0 | 4 | 1500 |
ST-2 | 2 | 8.7 | 17.4 | 230 | 115 | 1.0 | 4 | 1500 |
ST-3 | 3 | 13 | 26 | 230 | 115 | 1.0 | 4 | 1500 |
ST-5 | 5 | 21.8 | 43.5 | 230 | 115 | 1.0 | 4 | 1500 |
ST-7.5 | 7.5 | 32.6 | 65.2 | 230 | 115 | 1.0 | 4 | 1500 |
ST-10 | 10 | 43.5 | 87 | 230 | 115 | 1.0 | 4 | 1500 |
ST-12 | 12 | 52.2 | 104 | 230 | 115 | 1.0 | 4 | 1500 |
ST-15 | 15 | 65.3 | 130 | 230 | 115 | 1.0 | 4 | 1500 |
ST-20 | 20 | 87 | 174 | 230 | 115 | 1.0 | 4 | 1500 |
ST-24 | 24 | 104 | 208 | 230 | 115 | 1.0 | 4 | 1500 |
FAQ
Q: Do you offer OEM service? A: Yes Q: What is your payment term? A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C. Q: What is your lead time? A: About 30 days after receiving deposit or original L/C. Q: What certifiicates do you have? A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
What we do: Stamping of lamination Rotor die-casting Winding and inserting - both manual and semi-automatically Vacuum varnishing Machining shaft, housing, end shields, etc Rotor balancing Painting - both wet paint and powder coating assembly Packing Inspecting spare parts every processing 100% test after each process and final test before packing. Product
Exhibition:
Sample:
According to your design,sample will be offer!!
Advantage:
1.Low MOQ: It can meet your promotional business very well.
2.Good Service : We treat clients as friend.
3.Good Quality :We have strict quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from forwarder
Chosse us !! not only your suppliers but also your friends!! Contact us if you need more details on 15kw generator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 50kw brushless alternator、380V Synchronous 50kw brushless alternator. If these products fail to match your need, please contact us and we would like to provide relevant information.
