single phase 110V AC 15 kVA alternator

Basic Info

Model No.:  ST series

Product Description

Model NO.: ST series Type: AC brush Alternator Warranty: 12 months Insulation Class: class B or F Color: optional Frequency: 50Hz/60Hz Trademark: Landtop, top Specification: International Standard HS Code: 8501610000 Output Type: AC Single Phase Winding: 10% copper wire Certificates: ISO, CE, SASO Out put: 100% output Voltage: 220V-240V Output: 2-24KW Transport Package: Wooden Case Origin: Fujian single phase 110v AC 15 kva alternator

Explanation:ST series generators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using.
The generators are of dripproof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.
The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. Power factor 0.8(lag). We can provide 60Hz and the other voltage's Generator according to the customer's request.
They can be coupled with a prime mover directly or through V-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor.

Operating Conditions:
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15 oC ~ 40 oC)
Relative air damping: Not exceed 90%
Alternator 220V 5kw
Technical Date
Model Output
(kW)
Current(A) Voltage(V) Power factor
(cos)
Pole
number
Speed
(r.p.m)
Series Connection Parallel Connecion Series Connection Parallel Connection
ST-2 2 8.7 17.4 230 115 1.0 4 1500
ST-3 3 13 26 230 115 1.0 4 1500
ST-5 5 21.8 43.5 230 115 1.0 4 1500
ST-7.5 7.5 32.6 65.2 230 115 1.0 4 1500
ST-10 10 43.5 87 230 115 1.0 4 1500
ST-12 12 52.2 104 230 115 1.0 4 1500
ST-15 15 65.3 130 230 115 1.0 4 1500
ST-20 20 87 174 230 115 1.0 4 1500
ST-24 24 104 208 230 115 1.0 4 1500

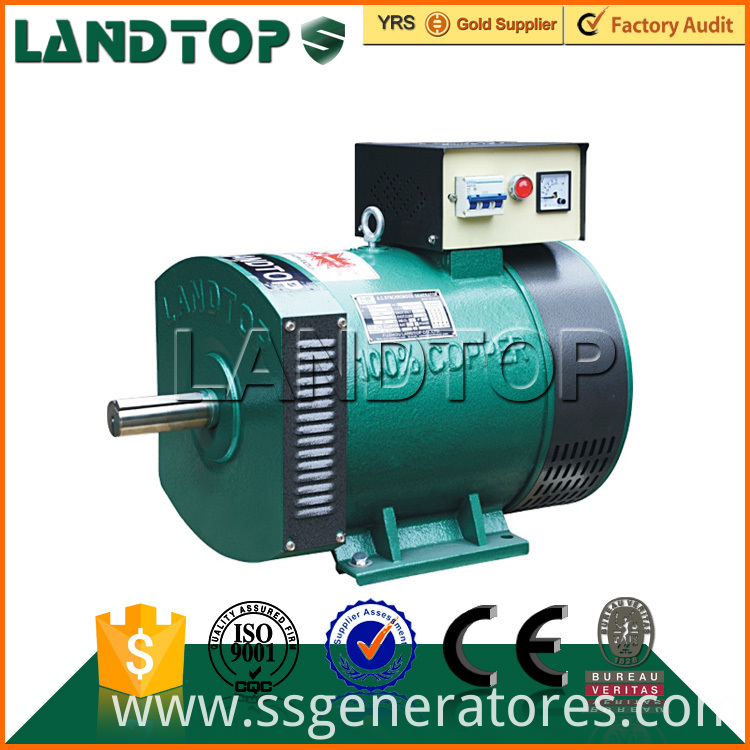

Picture:
single phase 110V AC 15 kVA alternator
single phase 110V AC 15 kVA alternatorsingle phase 110V AC 15 kVA alternator

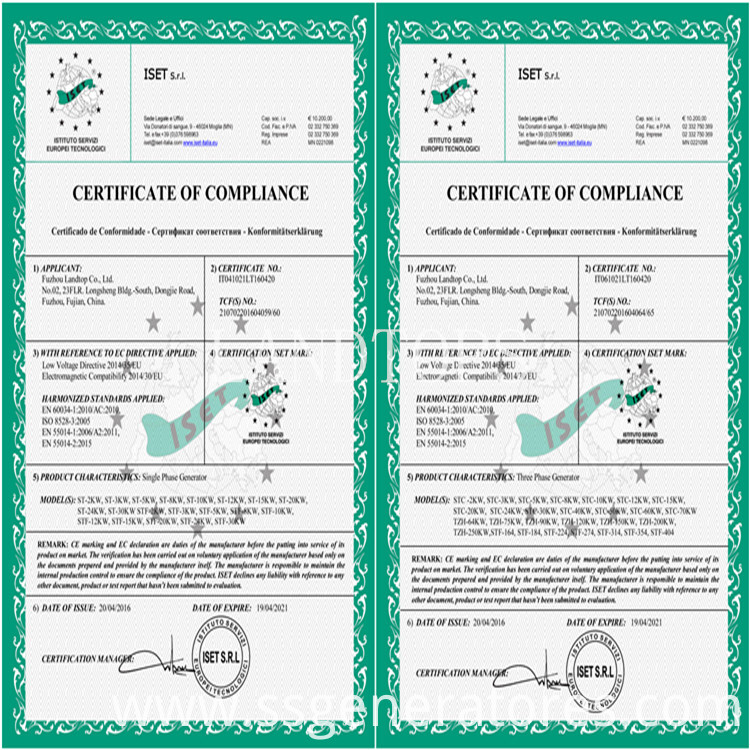

Certificates:
single phase 110V AC 15 kVA alternator

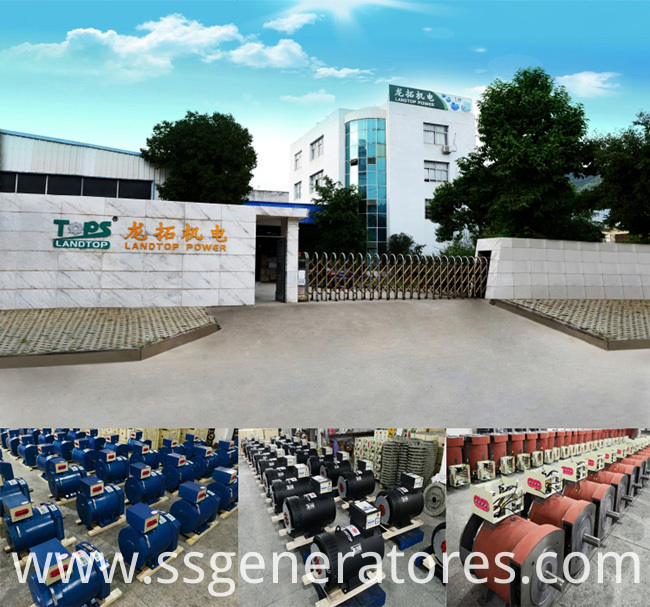

Company Information
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors etc.
single phase 110V AC 15 kVA alternator

Exhibition
single phase 110V AC 15 kVA alternator
 FAQ
Q: Do you offer OEM service? A: Yes   Q: What is your payment term? A: 30% T/T in advance, 70% balance when receiving B/L copy.  Or irrevocable L/C. Q: What is your lead time? A: About 30 days after receiving deposit or original L/C. Q: What certifiicates do you have? A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc

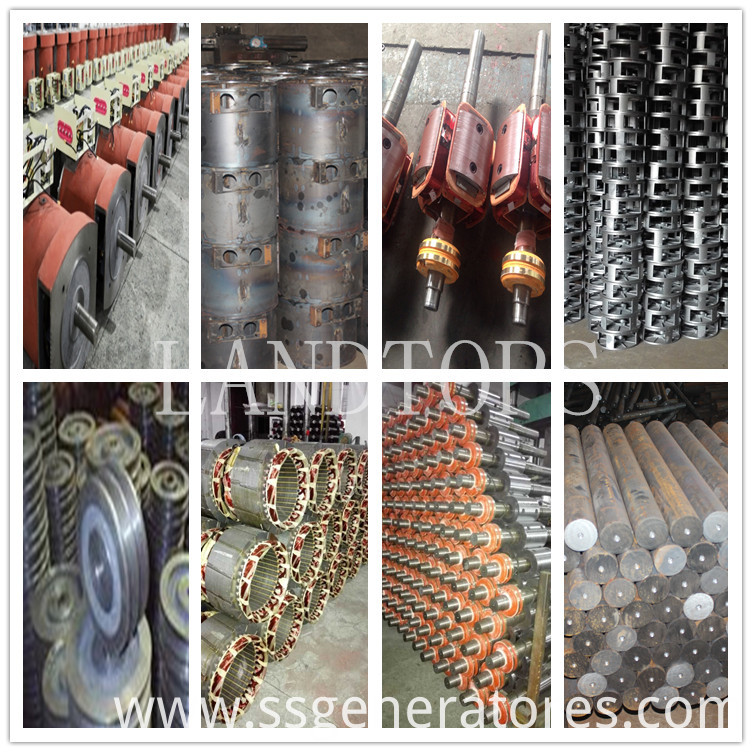

What we do: Stamping of lamination Rotor die-casting Winding and inserting - both manual and semi-automatically Vacuum varnishing Machining shaft, housing, end shields, etc Rotor balancing Painting - both wet paint and powder coating assembly Packing Inspecting spare parts every processing 100% test after each process and final test before packing.   Advantage:

1.Low MOQ: It can meet your promotional business very well.
2.Good Service : We treat clients as friend
3.Good Quality :We have strict quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from forwarder

Chosse us !! not only your suppliers but also your friends!!


Contact us if you need more details on 7.5kVA alternator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 110V AC 15 kVA alternator、10kVA alternator. If these products fail to match your need, please contact us and we would like to provide relevant information.
