Landtop 380V 3kw 20 HP electric three phase motor

Basic Info

Model No.:  Y2 series

Product Description

Model NO.: Y2 series Operating Speed: Constant Speed Species: Y, Y2 Series Three-Phase Casing Protection: Closed Type Frequency: 50Hz/60Hz Phase: Three-phase Efficiency: IE 1 Protection class: IP44, IP54, IP55 Color: As Request Trademark: LANDTOP Specification: CE. ISO. HS Code: 8501520000 Application: Industrial Number of Stator: Three-Phase Rotor Structure: Squirrel-Cage Certification: ISO9001 Output Power: 0.75Kw-315Kw Voltage: 380V/400V/440V/660V Insulation class: Class B/F Housing: Cast Iron Warranty: 1 Year Transport Package: Wooden Case/Plywood Case Origin: China Landtop 380V 3kw 20 hp electric three phase motor

Explaintion:Y series motor is totally enclosed and fan cooled three phase squirrel cage induction motor. It is newly designed in conformity with the relevant rules of IEC&DIN42673 standards. The Y connection for motor of 3kw and below. And delta connection for 4kw and above.

Opterating conditions:

Ambient temperature: -15ºC≤θ≤40ºC
Altitude: ≤1000m
Protection class: IP44
Insulation class: B/F
Rated voltage: 380V, other voltage on request
Cooling type: IC 0141
Duty: Continuous(S1)
Rated frequency: 50HZ, other frequency on request.

Technical data:

TECHNICAL DATA Output Full load
kW HP Current Speed Eff Power
Model (A) (r/min)  (%) Factor
380V 50Hz Synchronous Speed 3000 r/min (2 poles)
Y2-631-2 0.18 0.25 0.53 2720 65 0.8
Y2-632-2 0.25 0.34 0.69 2720 68 0.81
Y2-711-2 0.37 0.5 0.99 2740 70 0.81
Y2-712-2 0.55 0.75 1.4 2740 73 0.82
Y2-801-2 0.75 1 1.83 2830 75 0.83
Y2-802-2 1.1 1.5 2.58 2830 77 0.84
Y2-90S-2 1.5 2 3.43 2840 79 0.84
Y2-90L-2 2.2 3 4.85 2840 81 0.85
Y2-100L-2 3 4 6.31 2870 83 0.87
Y2-112M-2 4 5.5 7.1 2890 85 0.88
Y2-132S1-2 5.5 7.5 11 2900 86 0.88
Y2-132S2-2 7.5 10 14.9 2900 87 0.88
Y2-160M1-2 11 15 28.8 2930 88 0.89
Y2-160M2-2 15 20 34.7 2930 89 0.89
Y2-160L-2 18.5 25 34.7 2930 90 0.9
Y2-180M-2 22 30 41 2940 90 0.9
Y2-200L1-2 30 40 55.5 2950 91.2 0.9
Y2-200L2-2 37 50 67.9 2950 92 0.9
Y2-225M-2 45 60 82.3 2970 92.3 0.9
Y2-250M-2 55 75 101 2970 92.5 0.9
Y2-280S-2 77 100 134 2970 93 0.9
Y2-280M-2 90 125 160 2970 93.8 0.91
380V 50Hz Synchronous Speed 1500 r/min (4 poles)
Y2-631-4 0.12 0.16 0.42 1310 57 0.72
Y2-632-4 0.18 0.25 0.63 1310 60 0.73
Y2-711-4 0.25 0.34 0.79 1330 65 0.74
Y2-712-4 0.37 0.5 1.12 1330 67 0.75
Y2-801-4 0.55 0.75 1.57 1390 71 0.75
Y2-802-4 0.75 1 2.03 1390 73 0.76
Y2-90S-4 1.1 1.5 2.89 1400 75 0.77
Y2-90L-4 1.5 2 3.7 1400 78 0.79
Y2-100L1-4 2.2 3 5.16 1430 80 0.81
Y2-100L2-4 3 4 6.78 1430 82 0.82
Y2-112M-4 4 5.5 8.8 1440 84 0.82
Y2-132S-4 5.5 7.5 11.7 1440 85 0.83
Y2-132M-4 7.5 10 15.6 1440 87 0.84
Y2-160M-4 11 15 22.3 1460 88 0.84
Y2-160L-4 15 20 30.1 1460 89 0.85
Y2-180M-4 18.5 25 36.5 1470 90.5 0.86
Y2-180L-4 22 30 43.2 1470 91 0.86
Y2-200L-4 30 40 57.6 1470 92 0.86
Y2-225S-4 37 50 69.3 1480 92.5 0.87
Y2-225M-4 45 60 84.7 1480 92.8 0.87
Y2-250M-4 55 75 103 1480 93 0.87
Y2-280S-4 75 100 140 1480 93.8 0.87
Y2-280M-4 90 125 167 1490 94.2 0.87

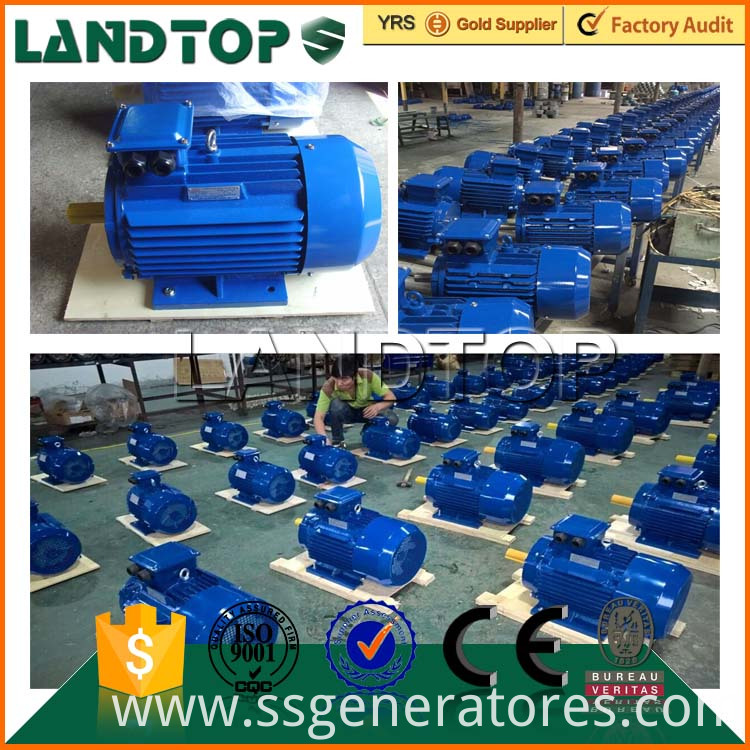

Company information:Product picture:
Landtop 380V 3kw 20 HP electric three phase motor
Landtop 380V 3kw 20 HP electric three phase motor

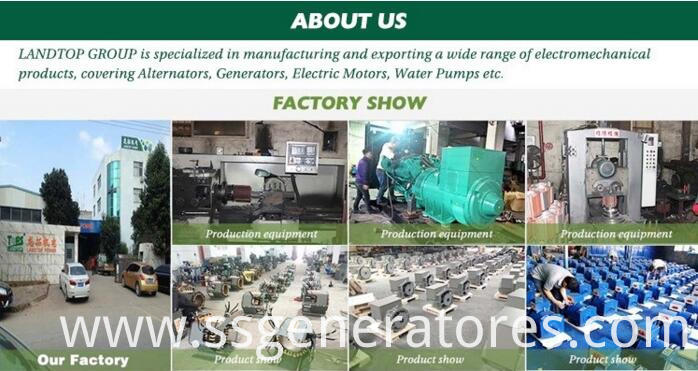

    LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering  Alternators, Generators, Electric Motors etc.

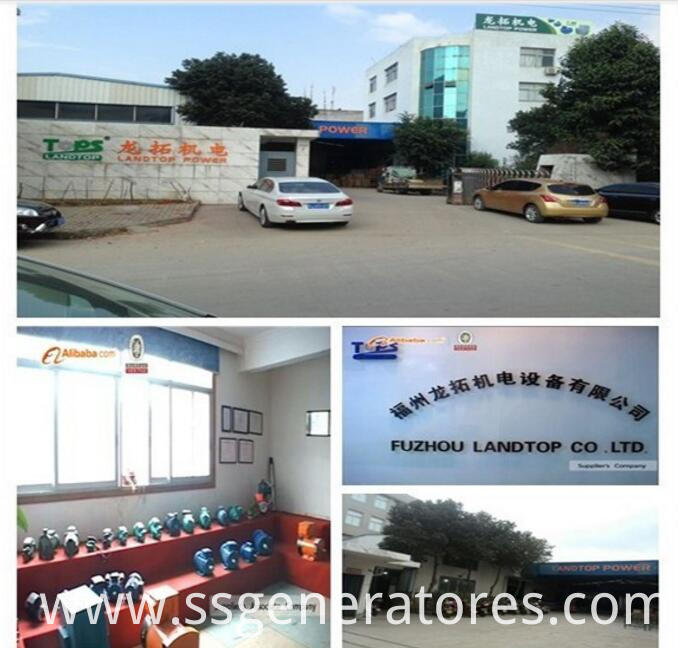

With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong (Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.

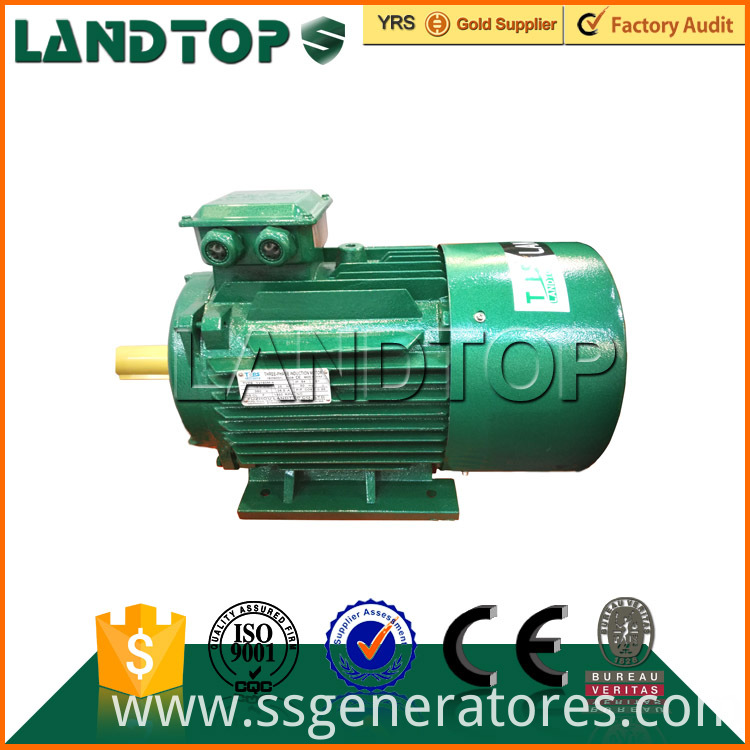

Landtop 380V 3kw 20 HP electric three phase motor


Landtop 380V 3kw 20 HP electric three phase motor

Certifications:
Landtop 380V 3kw 20 HP electric three phase motor

FAQ:

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy.  Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,  COI for Iran, SASO for Saudi Arabia, etc

What we do: Stamping of lamination Rotor die-casting Winding and inserting - both manual and semi-automatically Vacuum varnishing Machining shaft, housing, end shields, etc Rotor balancing Painting - both wet paint and powder coating assembly Packing Inspecting spare parts every processing 100% test after each process and final test before packing.
Advantage:

1.Low MOQ: It can meet your promotional business very well.
2.Good Service : We treat clients as friend.
3.Good Quality :We have strict quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from forwarder

Choose us !! not only your suppliers but also your friends!!



Contact us if you need more details on Electric Motor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 3 phase 370W motor、380V 3kw 20 HP electric motor. If these products fail to match your need, please contact us and we would like to provide relevant information.
