TOP YC 2HP 6kw electric water pump motor price list

Basic Info

Model No.:  YC series

Product Description

Model NO.: YC series Operating Speed: Constant Speed Species: Yc Series Single Phase Motor Casing Protection: Closed Type Type: Single Phase Electric Motor Output Power: 0.25HP-10HP Insulation Class: Class B/F Winding: 100% Copper Wire Warranty: 1 Year Trademark: TOPS Specification: CE. ISO. HS Code: 8501400000 Application: Industrial Number of Stator: Single-Phase Rotor Structure: Squirrel-Cage Certification: ISO9001 Certificate: CE / ISO9001 Protection Class: IP44/IP54/IP55 Cooling Method: IC0141 Housing: Cast Iron Color: As Request Transport Package: Carton/Wooden Case/Wooden Crate Origin: China TOP YC 2hp 6kw electric water pump motor price listApplication:
YC, YCL series heavy-duty 1 phase AC single phase motors are totally enclosed fan cooling type.  It is cast iron housing high starting torque motors. It is suitable for small size machine tools and water pumps, especially for family workshops where only single-phase power supply is available.

Operating Conditions:
1,Ambient temperature: -15ºC≤θ≤40ºC
2,Altitude:≤1000m
3,Rated voltage:220V, other voltage on request
4,Rated frequency:50HZ,other frequency on request
5,Duty/Rating: Continuous(S1)
6,Insulation class: Class B/F
7,Cooling method:IC0141

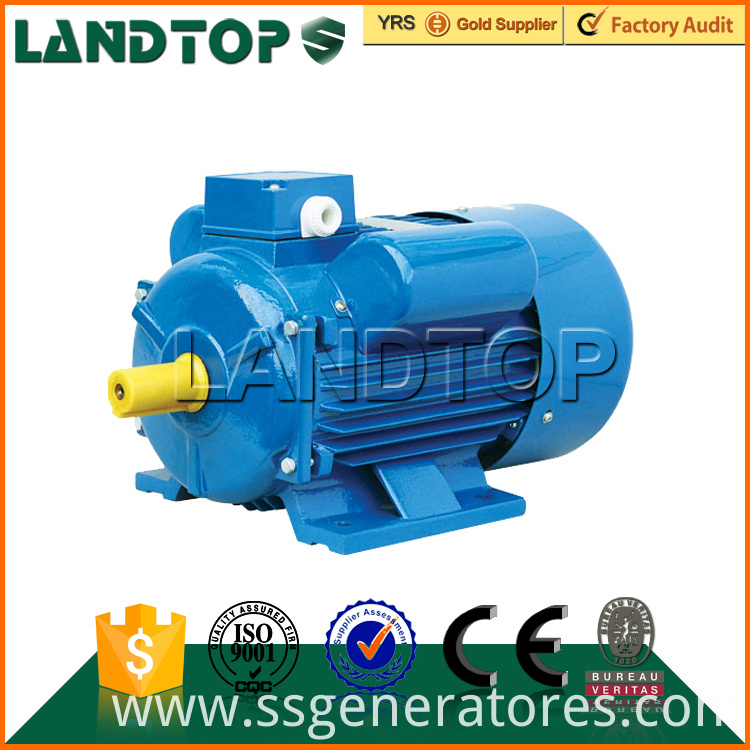

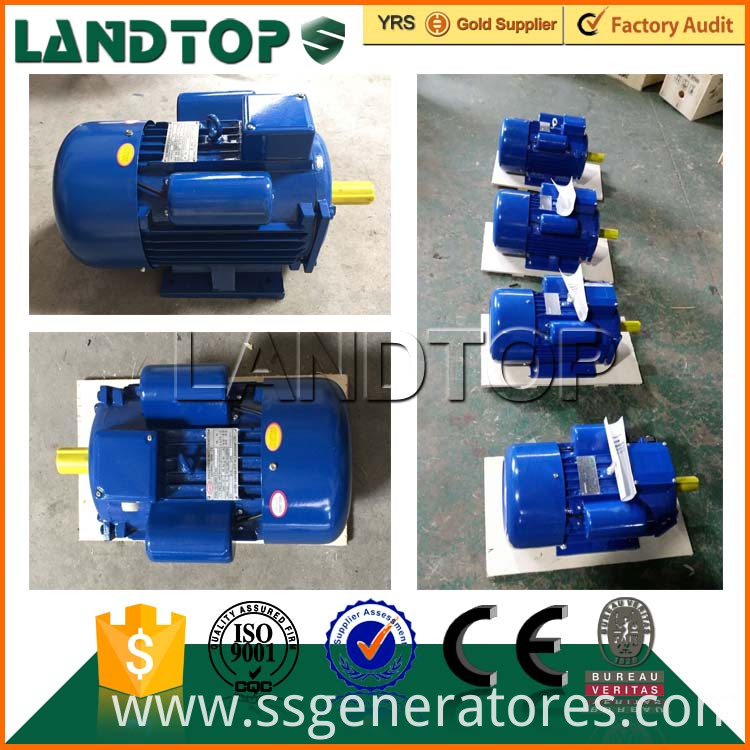

Product picture:

TOP YC 2HP 6kw electric water pump motor price list
TOP YC 2HP 6kw electric water pump motor price list

Technical Data:
Type Output Current Speed Tstt/Tn Ist/In
kW HP (A) (r/min)
YC711-2 0.18 0.25 1.89 2800 3 7
YC712-2 0.25 0.34 2.4 2800 3 7
YC80A-2 0.37 0.5 3.3 2840 3 6.5
YC80B-2 0.55 0.75 4.7 2860 3 7
YC80C-2 0.75 1 6.1 2880 2.8 7
YC90S-2 1.1 1.5 10.5 2900 2.8 7
YC90L-2 1.5 2 12.4 2920 2.8 7
YC100L-2 2.2 3 18.8 2940 2.6 7
YC112M1-2 3 4 21.4 2900 2.2 7
YC112M2-2 3.7 5 24.8 2900 2.2 7
YC711-4 0.12 0.16 1.88 1400 3 9
YC712-4 0.18 0.25 2.49 1400 2.8 7
YC80A-4 0.25 0.3 3.1 1410 3 6
YC80B-4 0.37 0.5 4.1 1420 3 6
YC80C-4 0.55 0.75 5.6 1430 3 6
YC90S-4 0.75 1 8.3 1440 2.8 6.5
YC90L-4 1.1 1.5 11.2 1450 2.8 6.5
YC100L-4 1.5 2 12.5 1460 2.8 6.5
YC112M-4 2.2 3 18.3 1470 2.6 6.5
YC132SA-4 3 4 19 1460 2.2 6.5
YC132SB-4 3.7 5 22 1460 2.2 6.5
YC132M1-4 5.5 7.5 32.5 1460 2 6.5
YC132M2-4 7.5 10 40 1460 2 6.5

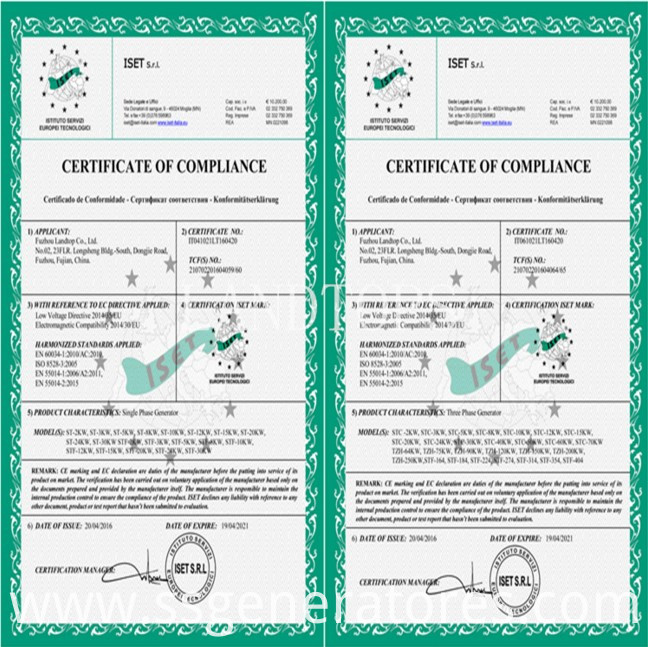

Certificaiton
TOP YC 2HP 6kw electric water pump motor price list
TOP YC 2HP 6kw electric water pump motor price listTOP YC 2HP 6kw electric water pump motor price list FAQ

Q: Do you offer OEM service? A: Yes Q: What is your payment term? A: 30% T/T in advance, 70% balance when receiving B/L copy.  Or irrevocable L/C. Q: What is your lead time? A: About 30 days after receiving deposit or original L/C. Q: What certifiicates do you have? A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc

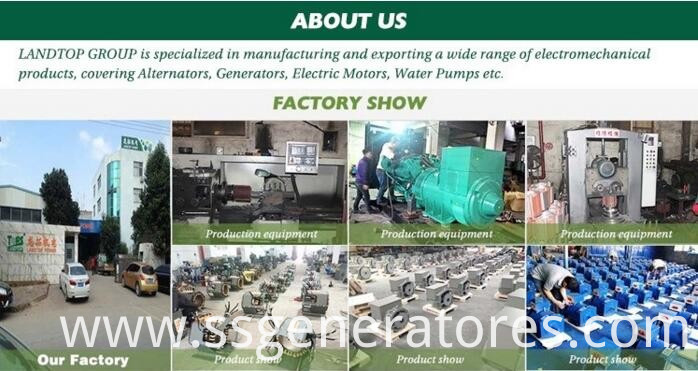

What we do: Stamping of lamination Rotor die-casting Winding and inserting - both manual and semi-automatically Vacuum varnishing Machining shaft, housing, end shields, etc Rotor balancing Painting - both wet paint and powder coating assembly Packing Inspecting spare parts every processing 100% test after each process and final test before packing.

Contact us if you need more details on electric motor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about single phase motor、2HP 6kw motor price list. If these products fail to match your need, please contact us and we would like to provide relevant information.
